Efficient pre-assembly and integration: Specialized tool for radiator frame installation

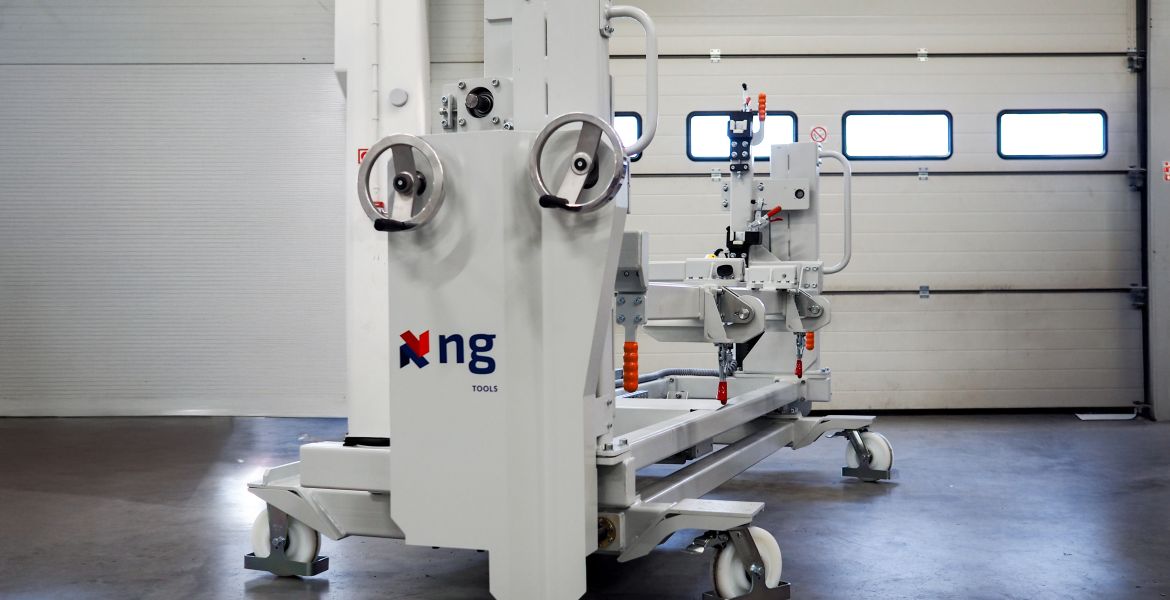

Precise positioning of the radiator frame is crucial for the correct installation of subsequent vehicle components. Even small deviations can hinder component integration and increase the risk of assembly errors. That’s why we have developed a solution that combines ergonomics, safety, and repeatable accuracy – a manual tool for small-scale production, specialized for the assembly and integration of radiator frames in buses.

The device’s design supports a two-stage assembly process. In the first phase, the tool enables convenient, ergonomic, and precise pre-assembly of components directly onto the radiator frame. In the next stage, the same device is used to transport and accurately position the entire unit relative to the main chassis frame. The electric lifting mechanism ensures smooth height adjustment, while multi-axis adjustment systems enable precise alignment of components. The result? Reduced assembly time, improved workplace safety, and ensured full process repeatability.

NG Engineering Group delivers solutions designed from the ground up to meet the specific needs of each client. With extensive experience in industrial mechanics, we provide not only equipment but also tangible support in process optimization. Our devices increase production efficiency, minimize the risk of errors, and improve workplace ergonomics – all contributing to a higher quality end product.
